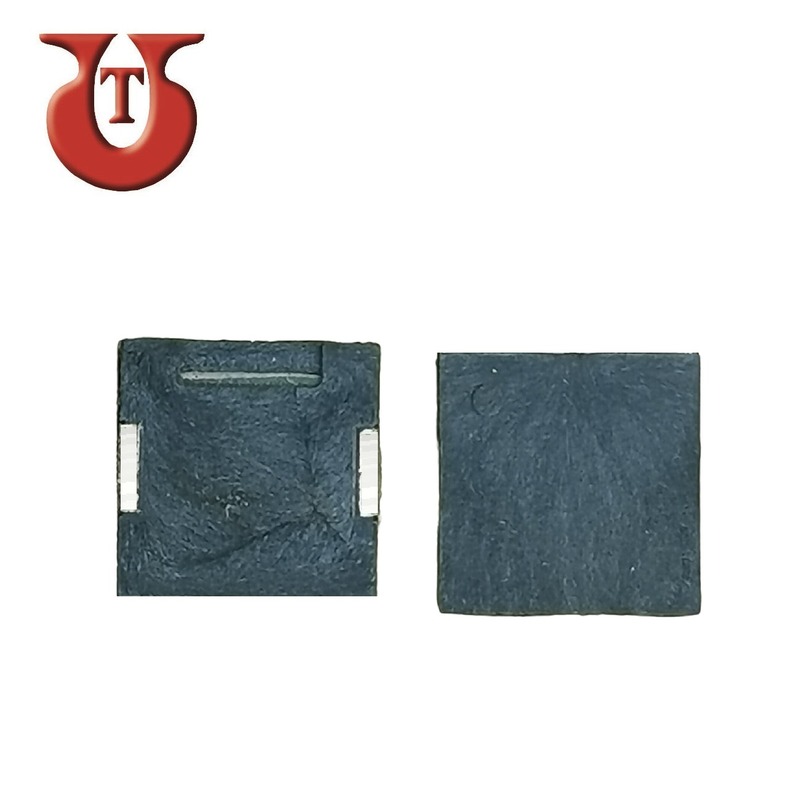

Name: 12mm SMD Plastic Piezo Buzzer
Brand: 12mm SMD Plastic Piezo Buzzer
SKU: UTPT1230S
Price: 1 USD
Availability: InStock
Rating: 5 (182 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: UTPT1230S

Type: Buzzer

Color: Black

Technology: Piezo

Mounting Type: Surface Mount

Size / Dimension: 12 x 12 x 3mm

Product name: 12mm SMD Piezo Buzzer

Housing material: Plastic

Πιστοποίηση: ROHS/ISO9001

Components: Sound Passive

Βασικές πληροφορίες

Πιστοποίηση: ROHS/ISO9001

Model Number: UTPT1230S

Πληρωμής & Αποστολής Όροι

Packaging Details: 12mm SMD Piezo Buzzer: Export Carton Box

Supply Ability: 2500000 Piece/Pieces per Month

Περιγραφή προϊόντων

Product Description

Rated Voltage (Vp-p)	3
Operating Voltage (Vp-p)	1-25
Rated Current (mA)	5 max
Capacitance at 100Hz 1V (pF)	16000+/-30%
Sound Output at 10cm (dB)	75 min
Resonant Frequency (Hz)	4000+/-500
Operating Temperature (°C)	-20~+70

Product Packaging

Buzzer Catalogue

PIEZO BUZZER

MAGNETIC BUZZER

MECHANICAL BUZZER MECHANICAL BUZZER

Company Profile

Union Team Ltd.(UTL) is well-developed and experienced manufacturer since 1987. Headquarter in Hong Kong and manufacturing plants in Zhejiang, China. We specialized in manufacturing high quality sound components including Buzzer, Speaker, Full Range Speaker, Condenser Microphone. The products can be widely used in telephones, notebook, earphone, headphone, electronic toys, mobile phones, radio, bluetooth speaker, alarm system, etc. Our component models are over 2000. Based on 35 years of experience and strong R&D team, Union Team provides a wide range of OEM/ODM products and professional technical support to meet customers' strict requirements.

Manufacturing Technique

Certifications

ISO9001(English Version)

RoHS Report

Phthalates Report

Main Series

Loud Speaker TV Speaker Mylar Speaker

Earphone & Headphone Speaker Condenser Microphone Buzzer Plate

Transport
